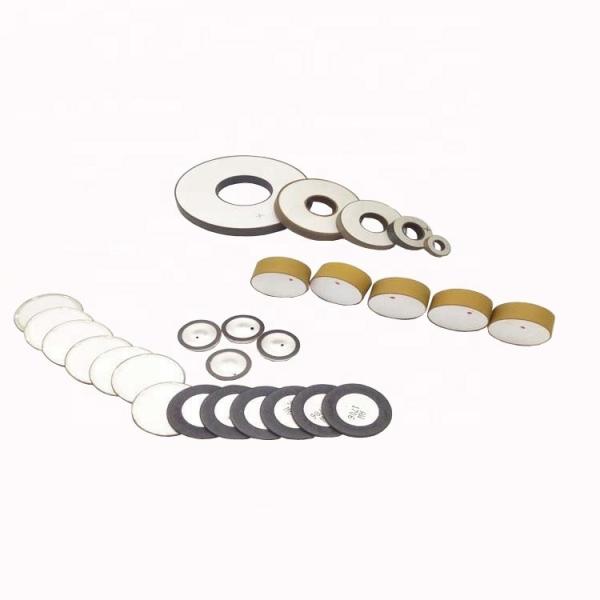

PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc

Name: PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc
Brand: TAIMI
Price: 1 USD

China PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc wholesale

Brand Name : TAIMI

Model Number : TM-PZT piezo ceramic

Certification : ISO9001、ISO14001、IATF16949

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 1000000/month

Delivery Time : 10~15days

Packaging Details : safe packaging

Type : piezo ceramic transducer

Material : PZT, PZT4,PZT5.PZT8 or Other required material

Color : yellow,brown,black,gray

Usage : Vibration Sensor

feature : Customized different Size Ring Piezo

Rohs : Yes

Diameter : 9-50mm

Application : Ultrasonic Beauty or Cleaning or Other Vibration

Frequency : 300Khz-10Mhz

Warranty : 1 Year for Piezoelectric Ceramic

Size : Can Be Customized for Piezoelectric Ceramic

Quality guarantee : 1 years

Capacitance at 1khz : 25000±30%

Advantage : 10 Years Structural Ceramics Experience

Contact Now

Wholesale High Quality Piezoelectric Disc Pzt Material Ultrasonic Ceramic Piezo Elements

piezo ceramic disc Product Description

Piezoelectric ceramic disc materials are electromechanical transducers: They can convert mechanical energy into electrical energy and vice-versa

PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc

Disc Piezo Ceramic Material :

PZT4,PZT5,PZT8 or other required Piezoelectric Materials

(If need the piezoelectric material performance list, pls contact us)

The Applications of Piezoceramic Disc:

Piezo transducer vibration	Ultrasonic Sensor	Fish finder transducer
Atomizer transducer	Wall thickness sensor	Compression sensor
Ultrasonic cleaning	Material stress sensor	Piezo expansion sensor
Ultrasonic medical	pressure sensor	Beauty transducer
Matter dispersion	Biomedical probe	Ultrasonic mixing
Sonar transducer	Piezo electricity harvesting	More other application

♥ if don't find what informations you need. Pls check connect us to get more.

We are always here to support you

PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc

Piezo ceramic disc specifications

Some Standard Size of Disc Piezo Ceram

(Size=OD*Thickness) (Qm=Mechanical quality factor) (tanδ(%)=Dielectric dissipation factor )

Size	Thickness Frequency ft(MHz)	Capacitance C(pf)	Impedance Zt(Ω)	Kt (%)
16×0.4	5.0±5%	5400±15%	≤5	≥45
16×2.1	1.0±5%	1000±15%	≤4	≥45
20×1.2	1.65±5%	1180±5%	≤2.5	≥45
20×2.0	1.0±5%	1650±15%	≤4	≥45
25×0.4	5.0±5%	1280±15%	≤4	≥45
25×1.2	1.65±5%	1350±15%	≤2	≥45
25×1.0	2.0±5%	5800±15%	≤4	≥45
25×2.0	1.0±5%	2700±15%	≤4	≥45
28×1.0	2.0±5%	6940±15%	≤4	≥45
28×1.7	1.2±5%	3880±15%	≤3	≥45
28×2	1±5%	3850±15%	≤3	≥45
28×2.0	1.0±5%	3300±15%	≤3	≥45
30×3.0	66.7	2730±12.5%	≤3	≥45
35×3.0	63.0	3100±12.5%	≤3	≥45
38×6.5	59.9	1580±12.5%	≤3	≥45
45×3.0	50.0	5100±12.5%	≤3	≥45
45×3.5	50.0	4700±12.5%	≤3	≥45
50×3.0	46.0	5800±12.5%	≤3	≥45
50×3.5	46.0	6300±12.5%	≤3	≥45
50×5.0	46.0	4150±12.5%	≤3	≥45

PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc

We can customize your required size piezoelectric ceramics as need.

♥ If you are interested in our product,

♥ Pls just feel free to send us your inquiry.

♥ We wil try our best to quote the competitive price for you!

Certificates

PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc

Piezo ceramic disc packaging & Shipping

PZT Material Ultrasonic Ceramic Piezo Elements Piezo Ceramic Disc

FAQ

Q: Delivery Time

A: Based on the order quantity, the goods will be sent out within 2-7 days.

Q: Payment

A: T/T,W esternUnion,L/C,Paypal

Q: Quantity guarantee

A: All products will have been strictly Quality insepected before packing.

Q: Shipping

A: We have strong cooperation with DHL,TNT,UPS,FEDEX,and shipping agent for air and sea.

give the economic freight according to goods weight.

Q: Wealth of experience

A: Professional sercive.choose us,you will do the trade more easily.

Q: Good Service

A: Excellent team to offer the efficient and professional reply.

Q: Technical Problem

A: Provide Professional Technical Support.
